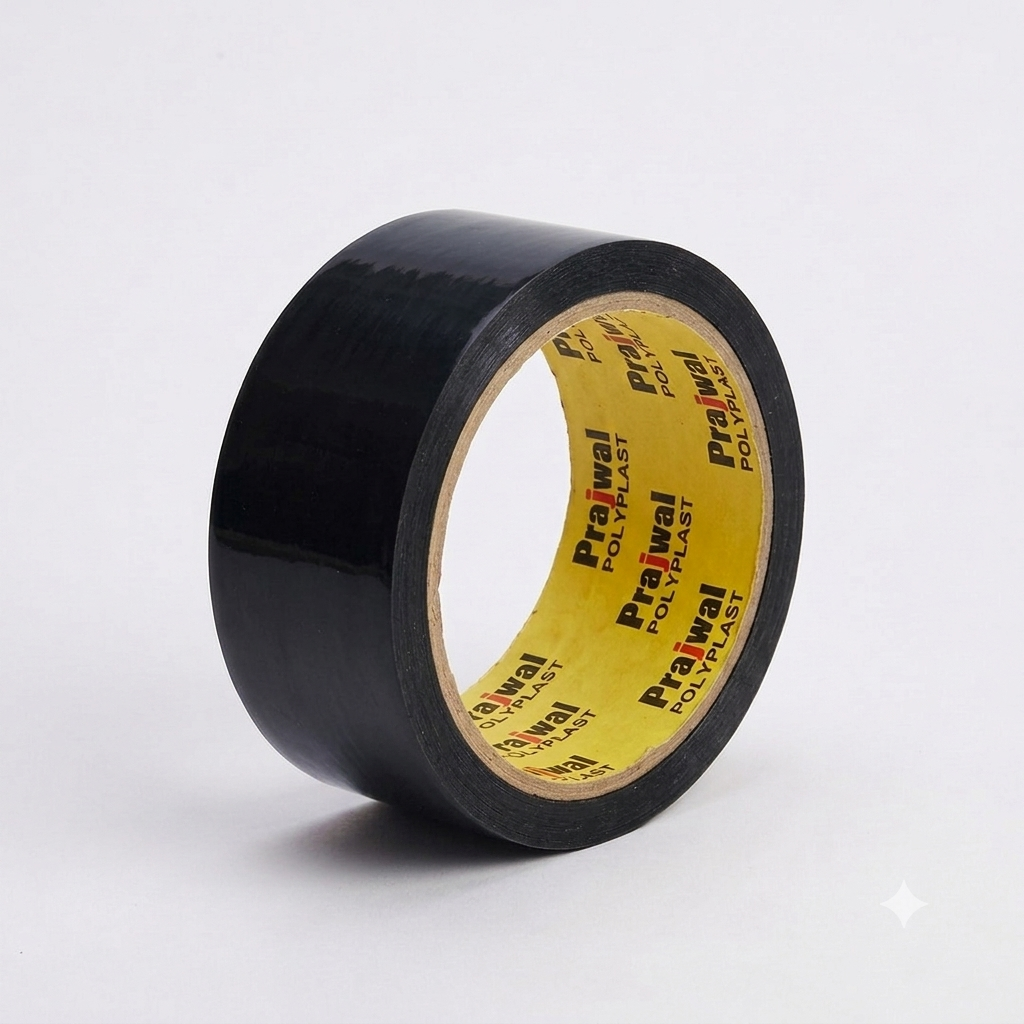

BOPP Tape — Black
BOPP Film / Water-Based Acrylic
- Service
- -40 to 120 °C
- Peel
- 5.00 N/25mm
View Product
BOPP Tape
BOPP-1005

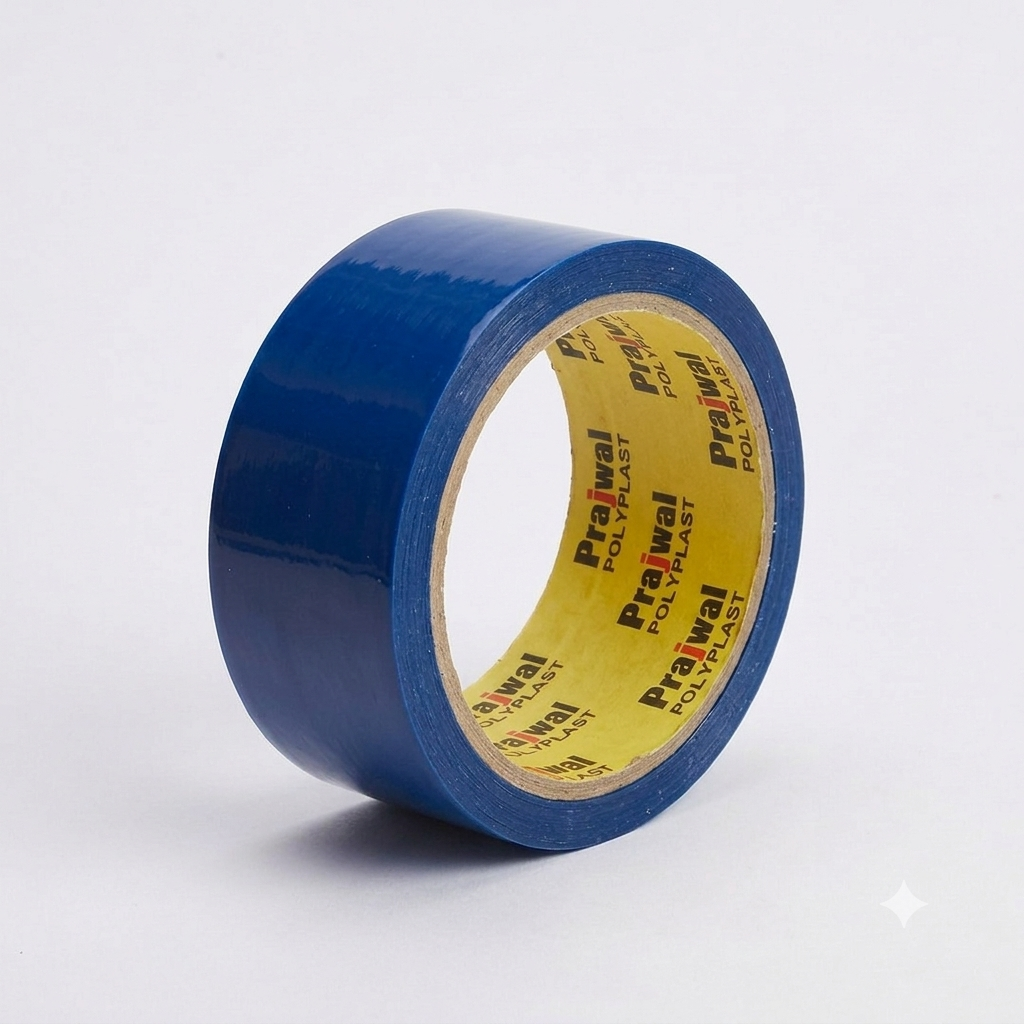

BOPP Tape — Blue
Biaxially oriented polypropylene tapes for carton sealing, bundling and general packaging.
BOPP Film / Water-Based Acrylic
Blue
Product gallery
Key performance
- Total thickness
- 0.0450 mm
- Service temperature
- -40 to 120 °C
- Peel adhesion
- 5.00 N/25mm
- Tensile strength
- 47.00 N/25mm
- Standard colour
- Blue
- Slitting
- 0.50–1,600 mm
Technical Specifications
Property, test method and recorded value.
| Property | Test method | Value |
|---|---|---|
| Total Thickness | ASTM D-3652 | 0.0450 mm 1.77 mil |
| 180° Peel Adhesion to Steel | ASTM D-3330 | 5.00 N/25mm 12.9 oz/in |
| Tensile Strength | ASTM D-3759 | 47.00 N/25mm 5.3 lbf/in |
| Elongation at Break | ASTM D-3759 | 35% 35% |
| Operating Temperature | — | -40 °C to 120 °C -40 °F to 248 °F |
Values are typical results from controlled laboratory testing and are provided for reference only. They do not constitute a specification for acceptance. Perform your own evaluation against the exact application and request a certificate of analysis from the quality lab before production release.
Technical Overview
BOPP-1005
Force per unit width
Both properties are measured on a 25 mm wide specimen and expressed in N/25mm.
180° Peel Adhesion to Steel
5.00
N/25mm
ASTM D-3330
Tensile Strength
47.00
N/25mm
ASTM D-3759
Elongation at break
Elongation at break
35
%
ASTM D-3759
Service temperature range
The documented continuous service span for this product.
- Minimum
- -40 °C
- Maximum
- 120 °C
The bar spans the documented range only. No performance is implied above 120 °C or below -40 °C.
Tape Construction
Layer diagram is schematic; layer heights are not to scale.
Section view
0.0450 mm total
BOPP Film
Water-Based Acrylic
- Backing
- BOPP Film
- Adhesive
- Water-Based Acrylic
- Core
- 76 mm Plastic · 38 mm Plastic · 25 mm Plastic · 76 mm Cardboard
- Slitting width
- 0.50–1,600 mm
Total thickness and slitting limits are recorded product data. Release liner, coating weights and any additional construction layers are not defined on this record and are therefore not shown; request a sample for the as-built construction.
Substrate Compatibility
Indicative guidance for the Water-Based Acrylic adhesive family.
No compatibility guidance is published for the Water-Based Acrylic adhesive family. Contact the technical lab for a substrate recommendation.
These ratings are indicative guidance for the adhesive family rather than a measured result for this specific product. Actual adhesion depends on surface energy, cleanliness, dwell time, temperature and application pressure. Perform an adhesion test per ASTM D-3330 before changing production line surfaces, and request surface preparation guidance from the technical lab.
Applications & Industries
Industries this product is specified into.
Industry tagging reflects where the product is currently specified. Suitability for a specific line remains subject to your own surface and process evaluation.
Documentation
TDS is generated live from the product record; the SDS is the manufacturer-issued file when one is uploaded.
-
TDS
Technical Data Sheet
Construction, recorded specifications with test methods, conversion limits and certifications.
Download TDS -
SDS
Safety Data Sheet
Product identification and handling information. Sections not held in the product record are marked as unavailable rather than stated.
Download SDS
More from this range
Related BOPP Tape
BOPP-1007

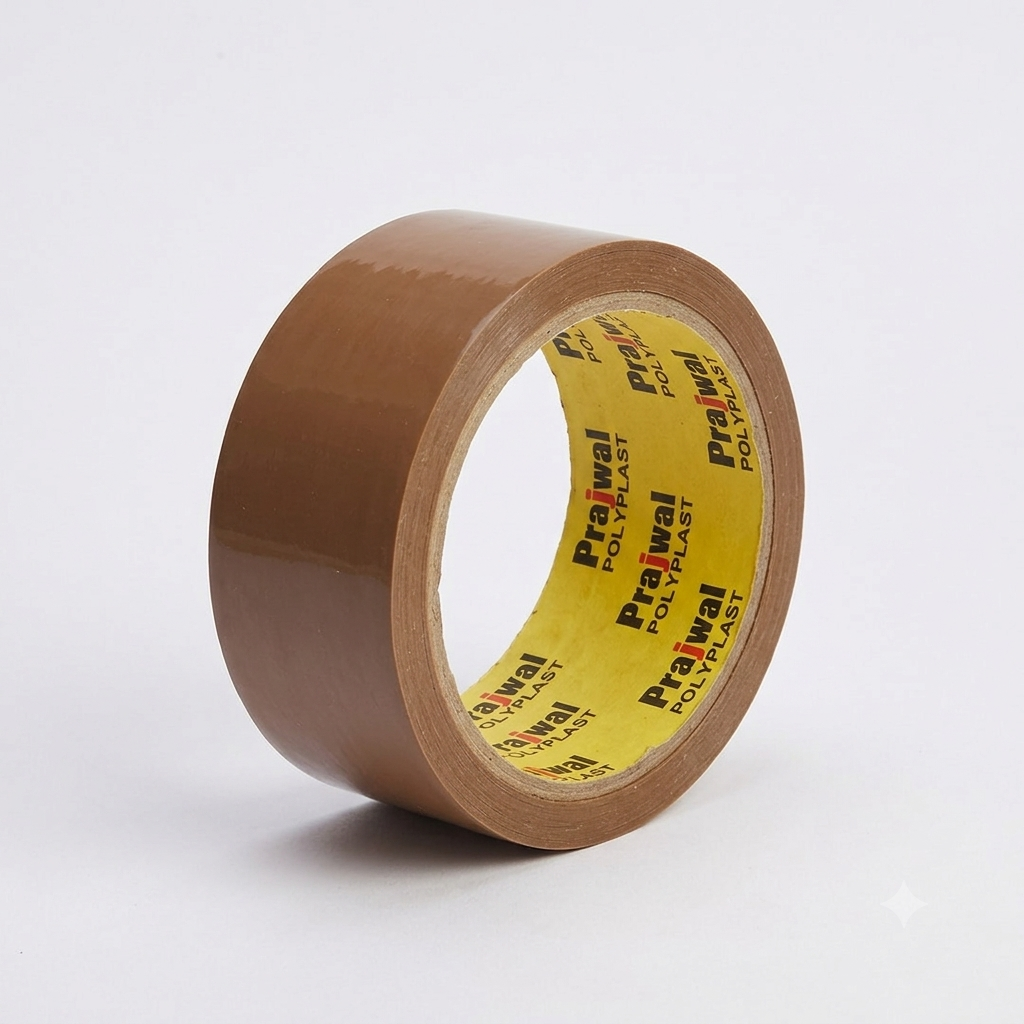

BOPP Tape — Brown
BOPP Film / Water-Based Acrylic
- Service
- -40 to 120 °C
- Peel
- 5.00 N/25mm
View Product
BOPP-1006

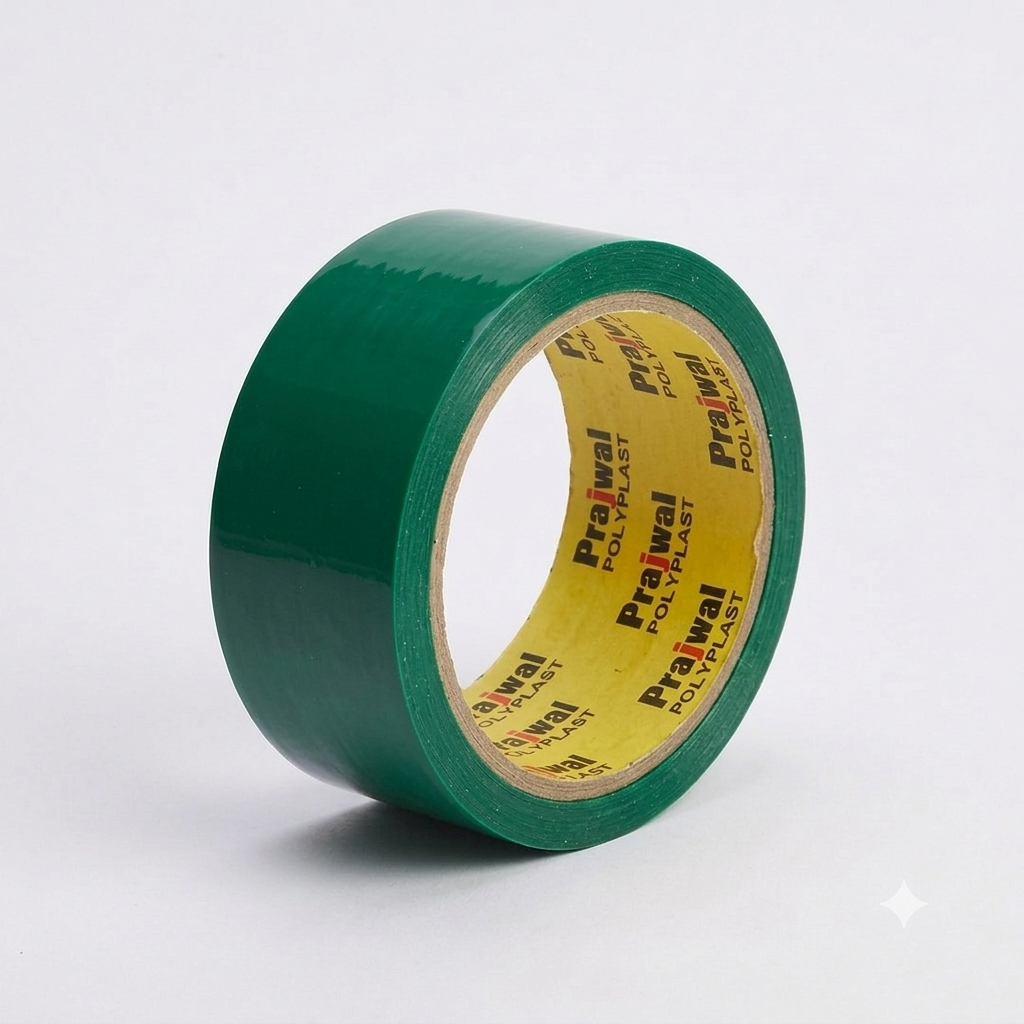

BOPP Tape — Green
BOPP Film / Water-Based Acrylic
- Service
- -40 to 120 °C
- Peel
- 5.00 N/25mm
View Product
BOPP-1002

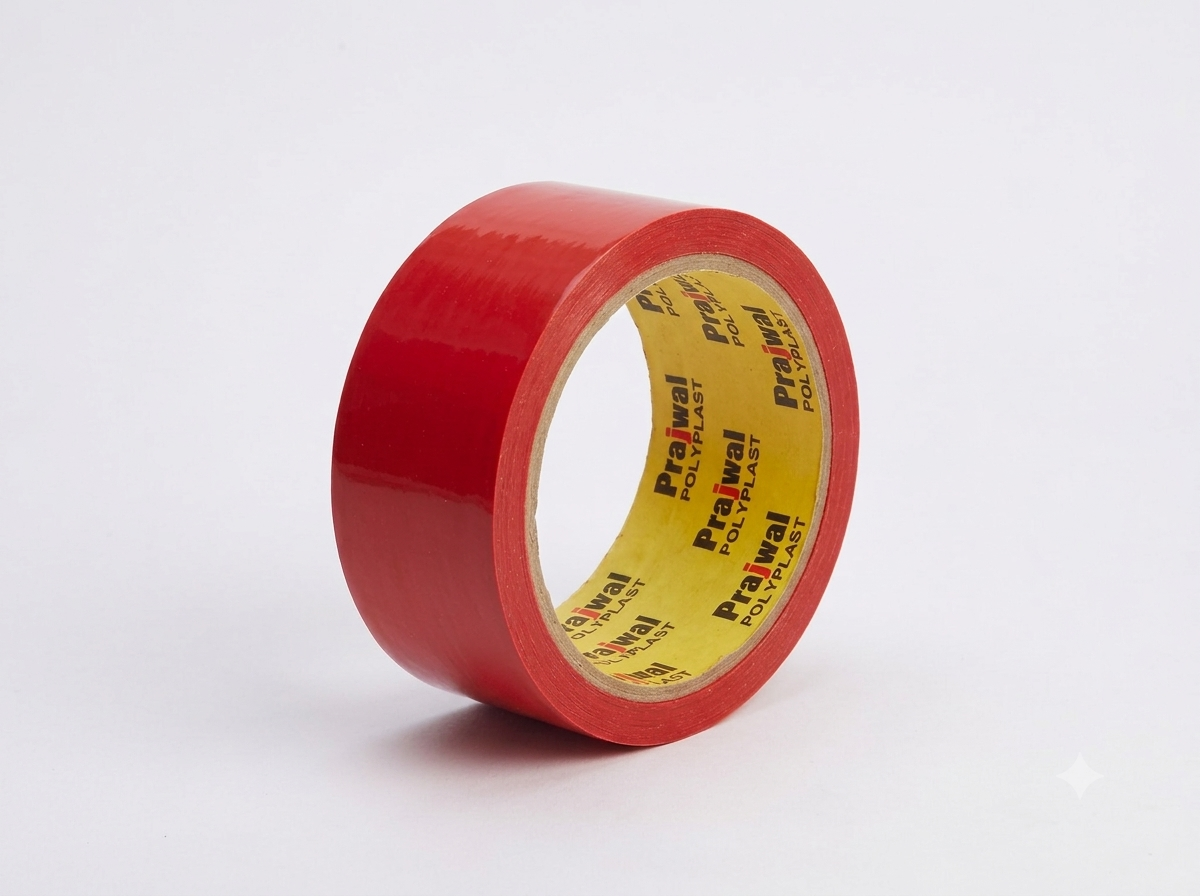

BOPP Tape — Red
